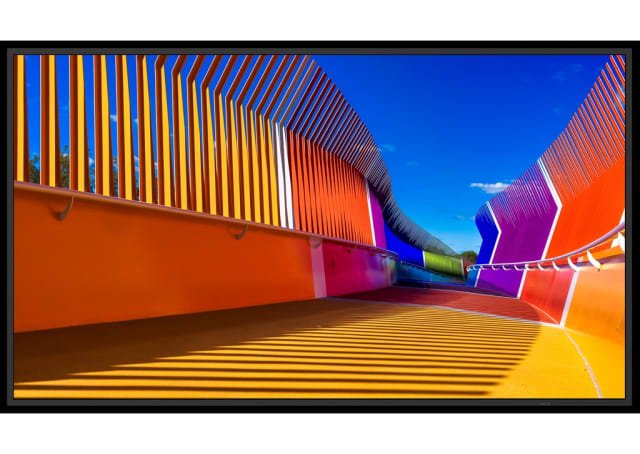

Sharp MultiSync? PN-E509 LCD 50″ Essential Large Format Display

The entry point for professional display solutions, the Sharp MultiSync? PN-E Series is designed for modern business environments that need more than a consumer TV can offer.

Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the PN-E Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point.

SKUPN-E509
Categories

Specifications

Panel Technology

VA with Direct LED backlights

Screen Size

55 inch

Aspect Ratio

16:9

Pixel Pitch

0.315 mm

Brightness

350 cd/m2

Contrast Ratio

4000:1

Viewing Angle (H/V)

178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Colour Depth [bn]

1.073 (8bit + FRC)

Response Time

8ms

Panel Refresh Rate (Hz)

60Hz

Haze Level (%)

25

Supported Orientation

Face Up; Landscape; Portrait

Native Resolution

3840 x 2160

Supported Resolution
Horizontal Frequency [kHz]

15 – 136

Vertical Frequency [Hz]

24 – 75

Input Video Digital

1 x USB-C (with HDCP, 15 W); 2 x HDMI

Input Audio Digital

1x USB-C; 2 x HDMI

Input Control

1 x LAN 100Mbit; 1 x RS232

Power Consumption

99W shipping

Power Savings Mode

< 0.5; < 2 (Networked Standby)

Operating Temperature

0?C to 40?C

Operating Humidity

20% to 80%

Storage Temperature

-20?C to 60?C

Storage Humidity

10% to 80%

Dimensions (W x H x D) [mm]

1120x 641 x 59.9

Weight [kg]

9.2

Bezel Width [mm]

10.8

VESA Mounting [mm]

200 x 200 (M6)

Supported Image Formats

CMYK); max. resolution 15360 x 8640, JPG (baseline, progressive, RGB

Supported File System

FAT16 / FAT32 @ USB 2.0

Safety and Ergonomics

CE; Energy Star 8; FCC Class B; RCM; UKCA; UL/C-UL or CSA; VCCI

Ecological Standards

EnergyStar 8.0

Professional performance, affordable value

Designed for seamless integration across the wider Sharp display family, the PN-E Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings, and a professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.

Whether for presentations, retail signage, or corporate communication, the PN-E Series gives you the professional edge without stretching your budget.

Benefits

  • 4K UHD native resolution allows for high end visual acuity!
  • Built-in, integrated 10W speakers enhance the experience with superior sound
  • Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
  • Tilt back and forth installation (-20??20?) to install it at desired angle
  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • 24-Hour On/Off timer maintains power schedules
  • Integrated Media Player allows for audio, video or image playback via USB
  • USB Type-C port for audio/video input
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
