Specifications

Projection Technology	1-chip DLP? Technology
Aspect Ratio	16:10
Contrast Ratio (typ.)	000, 000:1 (Dynamic), 3
Brightness (Lumen)	16500 Lumen, with std. optional lense
Light Source	Laser
Light Source Life	000 hrs, 20
Lens	6 motorized lens options
Lens Adjustment	Motorized
Lens shift	+0.2, +0.5, H:-0.2, V:-0.5
Keystone correction	+/- 36? manual horizontal / +/- 36? manual vertical
Projection Factor	depending on lens selection (std. option NP54ZL at 1.25-2.01:1)
Projection Distance (m)	0.86 ? 43.2m
Screen Size (diagonal)	270 / 500"; Minimum: 100 / 40", Maximum: 1
Digital Input	1 x 12G-SDI; 1 x HDBaseT; 2 x DisplayPort supporting HDCP; 2 x HDMI? supporting HDCP
Digital Output	1 x 12G-SDI; 1 x HDMI supporting HDCP
Input Control	1 x D-Sub 9 pin (RS-232) (male); 1 x Screen Trigger
LAN	1 x RJ45
Power Supply	100-240 V AC; 50 – 60 Hz
Power Consumption	000 (Normal) / 900 (Eco) / 3 (Network Stand-by) / 0.5 (Stand-by), 1
Operating Temperature	5?C to 45?C
Operating Humidity	0% to 80%
Dimensions (W x H x D) [mm]	500 x 211 x 577 (without lens and feet)
Weight [kg]	28
Colour Versions	Black
Lenses (Motorized)	XP-57UL (0.31-0.33:1); XP-58ZL (0.55-0.75:1); XP-59ZL (0.74-1.08:1); XP-60ZL (1.05-1.41:1); XP-61ZL (1.4-2.11:1); XP-62ZL (2.1-4:1)
Safety and Ergonomics	CE; ErP; RoHS; RCM; TUEV Type Approved
Special Characteristics	HDMI – Input; PJ LINK; Portrait Setting; RS-232 Control; Sealed engine; Stacking Function; Timer-Function; Virtual Remote for direct PC control

Extreme efficiency in the sharpest detail

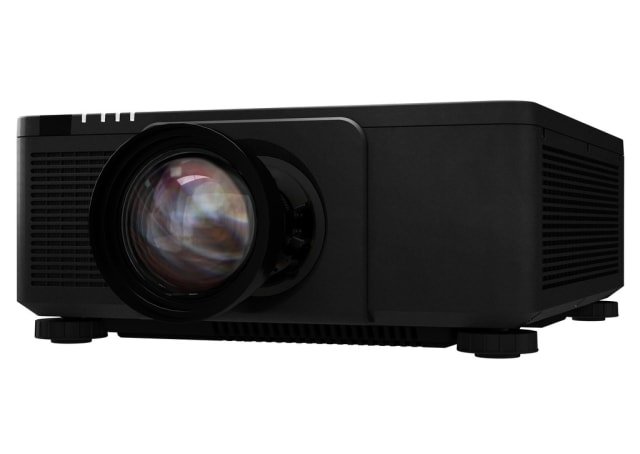

Projecting the sharpest detail and most life-like colours, the 4K+ X171Q laser phosphor projector features new HEP DMD technology for enhanced contrast and remarkably efficient performance.

RB laser technology is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant colours at high brightness levels. Long lasting imaging performance is safeguarded against dust contamination with an IP6X rated sealed light engine, also minimising maintenance requirements.

Compact and light weight, yet this impressive projector delivers all the professional functionality for easy installation and precision setup. For higher education, museums and conferencing, the X171Q offers reliable long-life performance at an impressively low total cost of ownership.

Benefits

Finest detail ? crisp 4K+ resolution achieves perfect image clarity for easy viewing of very detailed content

Superb image quality ? producing vivid reds, the RB laser light source delivers excellent colour performance, projecting images that are remarkably lifelike
