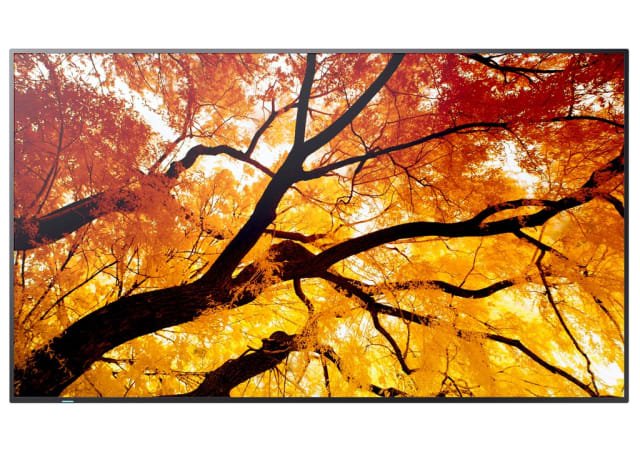

Sharp MultiSync? M322 32″ Professional Large Format Display

The Sharp MultiSync? M2 Series (32? up to 98?) is purpose-built for demanding signage and meeting room environments.

Featuring class-leading 450 cd/m? brightness, a high-haze panel to minimise glare, the M322 model delivers outstanding visual performance with unmatched colour precision.

SKUPN-M322
Categories

Specifications

Panel Technology

VA with Direct LED backlights

Active Screen Area

698.4 x 392.9mm

Aspect Ratio

16:9

Contrast Ratio

4000:1

Viewing Angle (H/V)

178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Response Time

8ms

Panel Refresh Rate (Hz)

60Hz

Haze Level (%)

25

Supported Orientation

Landscape, Portrait

Native Resolution

1920 x 1080

Supported Resolution
Horizontal Frequency [kHz]

15 – 135

Vertical Frequency [Hz]

23-76

Ambient Light Sensor

Integrated, triggered actions programmable

Temperature Sensor

3 sensors, Integrated, triggered actions programmable

Power Consumption

40W shipping

Power Savings Mode

< 0.5; < 2 (Networked Standby)

Operating Temperature

0?C to 40?C

Operating Humidity

20% to 80%

Safety and Ergonomics

CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA

Share your message, your way

The versatile solution for professional display applications, the Sharp MultiSync? M322 supports both landscape and portrait orientations while also containing a an anti-glare panel to allow for easy readability for true commercial applications. The new product contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters ? the message.

Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. Ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

Benefits

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • 450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
  • Integrated Media Player allows for audio, video or image playback via USB
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
