Specifications

Projection Technology	3-chip DLP Cinema? Technology
Screen Size [m]	up to 12 in DCI colour (1.8 Gain screen)
Lens	Zoom / Focus / Shift: Motorized. Other: Range of shift is dependent on lens. Primary Lenses: NP-9LS12ZM1: 1.2-1.72:1; NP-9LS13ZM1: 1.33-2.1:1; NP-9LS16ZM1: 1.62-2.7:1; NP-9LS20ZM1: 2.09-3.9:1
DMD Specifications	2048 x 1080. Chip: 0.69" S2K, DLP Cinema? Technology
Cooling Method	Liquid: Air and liquid cooling inside
Operating Temperature [?C]	10 to 35
Operating Humidity	10 to 85 – non-condensing
Storage Temperature [?C]	-10 to 50
Power Supply	50/60Hz, Built-in power supply. Projector Power Supply Unit: 200 to 240V AC, single phase
Rated Input Current	Projector power: 9.5A @ 200V-240V
Power Consumption [W]	1050 typ.
Weight [kg]	69 (without lens)
Special Characteristics	Built-in IMS (IMS3000, optional); Compact model; Dust sealed optical engine; Full HFR 3D support; Laser Light System; Latest digital technology; Low TCO; Metal filter
Ecological Materials	Laser technology reduces power usage and reduces replacement materials required
External Controls	2 x RJ45 (4 GPI and 6 GPO); 2 x RJ45 Gigabit Ethernet
Additional Features	60 Hz/eye); Integrated SMS; Integrated Storage: 2 TB (DCP, HFR 3D Support (48 Hz/eye, RAID5); NAS support
Light Source	2 years or 7500h (whatever comes first)

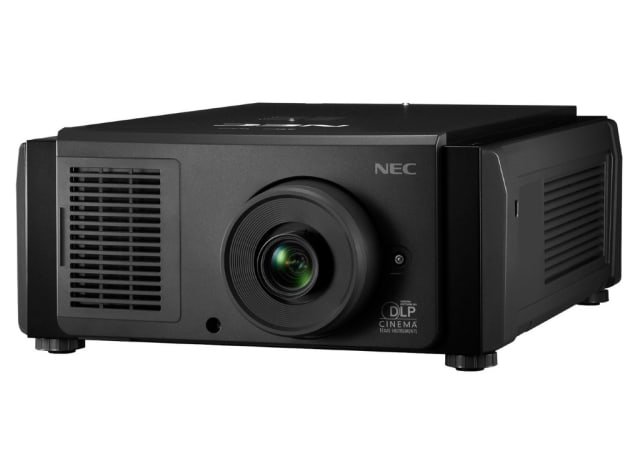

The NC1202L ? Quietest projection performance for mid-sized screens

The NC1202L is highly flexible, without the need for a special exhaust system, the projector is easy to install and suitable for ceiling, floor or mobile applications in mid-sized theatres with screen sizes of up to 12m wide.

With maintenance-free operation including protection against dust ingress and a low, eco-friendly power consumption, theatre operators benefit from a reduced overall total cost of ownership (TCO) and therefore achieve a greater per seat revenue.

Treat your movie-goers to next generation digital cinema projection for immersive, out-of-this-world motion picture experiences.

Benefits

Compact, lightweight and quiet ? easy installation in small projection booths, easy transportation for mobile cinemas and perfectly suited for boothless cinemas.

Sealed optical engine ? minimising dust ingress, consistent performance is assured and no special maintenance is required.

Highly flexible ? with no exhaust system required, the NC1202L is suitable for floor and ceiling installation and versatile content playback.

Virtually zero maintenance ? no lamp and no filter replacement costs, no maintenance personnel costs and no lamp stock due to the innovative Laser Light engine.

Enjoy a Lower TCO ? highest reliability, maintenance-free operation, low power consumption and up to 50000 hours life; the Laser light source results in a significantly lower total cost of ownership.
