Specifications

Projection Technology	3LCD Technology
Native Resolution	1920×1200
Contrast Ratio (typ.)	000, 000:1 (Dynamic), 3
Brightness (Lumen)	20000 Lm / 21000 Lm Center
Light Source	Laser
Light Source Life	000 hrs, 25
Lens	6 motorized lens options
Lens Adjustment	Motorized
Lens shift	-65, Up to H:?25, V:+65
Keystone correction	+/- 40? manual horizontal / +/- 30? manual vertical
Projection Factor	depending on lens selection (std. option NP54ZL at 1.25-2.01:1)
Projection Distance (m)	0.68 ? 80.77m
Screen Size (diagonal)	270 / 500"; Minimum: 152 / 60", Maximum: 1
Zoom	Motorized
Digital Input	1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI? supporting HDCP 2.2
Digital Output	1 x HDBaseT supporting HDCP 2.2
Audio Input	1 x HDBaseT audio support; 2 x HDMI audio support
Audio Output	1 x 3.5 mm Stereo Mini Jack (variable)
Input Control	1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
Remote Control	Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Power Supply	100-240 V AC; 50 – 60 Hz
Power Consumption	1530 Normal / 1400 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
Operating Temperature	0?C to 40?C
Operating Humidity	20% to 80%
Dimensions (W x H x D) [mm]	650 x 262 x 549 (without lens and feet)
Weight [kg]	28
Fan Noise [dB (A)]	42 / 34 (Normal / Silent)
Colour Versions	Black
Lenses (Motorized)	NP51ZL (0.53-0.65:1); NP52ZL (0.65-0.86:1); NP53ZL (0.86-1.25:1); NP54ZL (1.24-2.01:1); NP55ZL (1.98-3.95:1); NP56ZL (3.92-7.5:1)
Safety and Ergonomics	CE; EAC; ErP; RoHS; RCM; TUEV Type Approved
Special Characteristics	000 hrs Light Source Life; Virtual Remote for direct PC control, HDMI – Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 25, V=?40?); LAN control; Lens Memory; Lens Shift (vertical 0.65 max/-0.65 max

High brightness with extreme efficiency

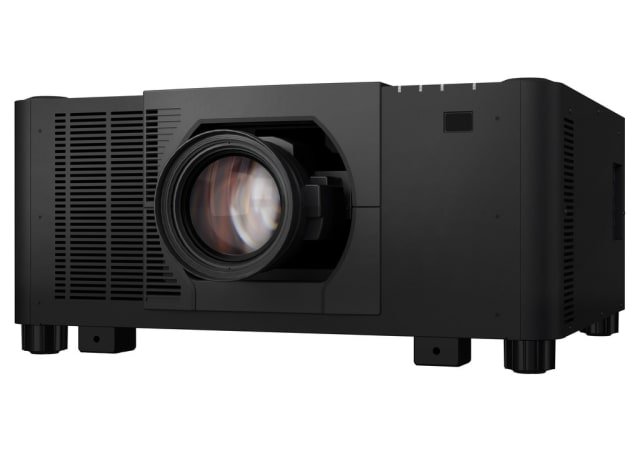

Sharp A201U is the first and only LCD projector featuring RB laser technology, this innovative solution is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant, almost DCI-P3 colour performance at high brightness levels. Consistently superior imaging quality is safeguarded with an IP5X rated optical engine, sealed against even the finest dust particles and eliminating maintenance demands.

Featuring advanced installation capabilities, easily managed with full ProAssist support, the compact Sharp A201U delivers the reliability, functionality and value as demanded by higher education, corporate, leisure and museum applications.

Benefits

No lamp replacement ? up to 25,000 h maintenance free operation possible due to Laser Light Source.

No filter service required ? the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget

Compact design ? a large venue projector with a comparatively small footprint and light weight design.

Impress with vivid colour & contrast ? brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.

Incredible visualisation capabilities ? impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
