Specifications

Panel Technology	IPS with Direct LED backlights
Active Screen Area	1, 209.6 x 680.4 mm
Aspect Ratio	16:9
Pixel Pitch	0.315 mm
Brightness	700 cd/m2
Contrast Ratio	8000:1
Viewing Angle (H/V)	178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]	1.073 (10bit)
Colour Gamut	72% of NTSC
Response Time	8ms
Panel Refresh Rate (Hz)	60Hz
Haze Level (%)	25
Supported Orientation	Face Up; Landscape; Portrait
Native Resolution	3840 x 2160
Supported Resolution
Horizontal Frequency [kHz]	15 – 135
Vertical Frequency [Hz]	23-76
HDMI IN 1	Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
HDMI IN 2	Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI OUT	Compute module, Option, Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2
Factory Calibration	Gamma; Intensity; RGB; Uniformity; White Point
Calibration with Software	Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Compute Module Slot	RPi4 Compute Module
Intel SDM	accepts Intel? Smart Display Modules Large and Small up to 66 W
Ambient Light Sensor	Integrated, triggered actions programmable
Temperature Sensor	3 sensors, Integrated, triggered actions programmable
Human Sensor	optional via Eco Sensor (PNKTES1)
Power Consumption	115W shipping
Power Savings Mode	< 0.5; < 2 (Networked Standby)
Operating Temperature	0?C to 40?C
Operating Humidity	20% to 80%
Dimensions (W x H x D) [mm]	1, 235.6 x 709.3 x 59.5
Weight [kg]	20.5
VESA Mounting [mm]	300 x 300 (FDMI); 4 holes; M6

Precision performance for critical applications

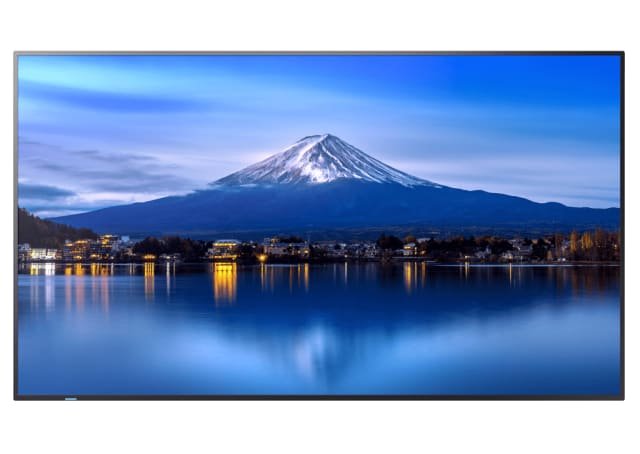

When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync? P6 Series delivers with precision and resilience. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards. Building on NEC?s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel? SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats.

Benefits

Enhanced imaging precision ? when brand consistency and corporate identity are important, NEC?s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.

Unhindered readability ? a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment

Security assured ? 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.

Mission-critical performance ? with 700 cd/m? brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.

Trusted integration ? full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
