Specifications

Projection Technology	3LCD Technology
Native Resolution	1920×1200
Contrast Ratio (typ.)	000, 000:1, 3
Brightness (Lumen)	7300 Lm Normal / 7600 Lm Center / 6600 Lm Silent Mode; compliant with ISO21118-2012
Light Source	Laser
Light Source Life	000 hrs, 20
Lens	5 motorized lens options
Lens Adjustment	Motorized
Lens shift	-50, H:?20, V:+10
Keystone correction	+/- 30? manual horizontal / +/- 30? manual vertical
Projection Factor	depending on lens selection (std. option XP-41ZL at 1.3-3.02:1)
Projection Distance (m)	0.7 ? 50.9m
Screen Size (diagonal)	270cm, Max. 1, Min. 101.6cm
Zoom	Motorized and manual (depending on lens)
Digital Input	1 x HDBaseT; 2 x HDMI? supporting HDCP
Audio Input	1 x HDBaseT audio support; 2 x HDMI audio support
Audio Output	1 x 3.5 mm Stereo Mini Jack
Input Control	1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN	1 x RJ45
Power Supply	100-240 V AC; 50 – 60 Hz
Power Consumption	434.0 Normal / 403 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
Operating Temperature	0?C to 40?C
Operating Humidity	20% to 80%
Storage Temperature	-10?C to 50?C
Dimensions (W x H x D) [mm]	499 x 164 x 407 (without lens and feet)
Weight [kg]	11.2
Optional Accessories	5 optional bayonet lenses; Cable Cover (XP-13CV-W, XP-13CV-B)
Lenses (Motorized)	XP-40ZL/NP40ZL (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-A/NP44ML-PA4 (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1)
Safety and Ergonomics	CE, EAC, ErP, RCM, RoHS
Special Characteristics	000 hrs Light Source Life, V=?30?); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max
Shipping Content (Accessories)	IR Remote Control, Power Cable, Projector, Quick Setup Guide

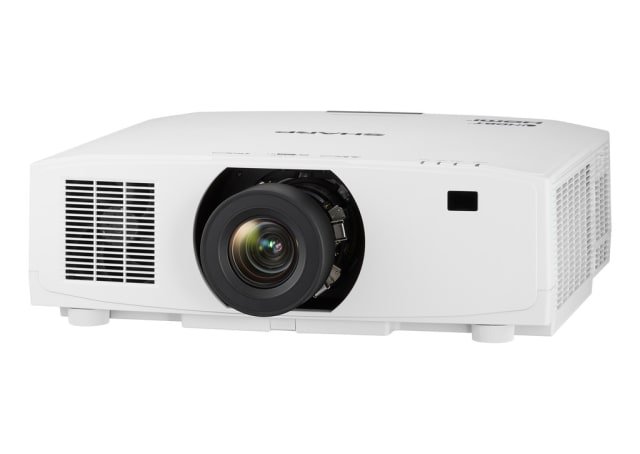

Cost-effective LCD-based laser projector with interchangeable lenses

3LCD technology generates brilliantly vivid colour, which, at 7300 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.

The V731U offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same lenses as the A/PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the V731U offers outstanding value for higher education, corporate, leisure and hospitality sectors.

Benefits

No lamp replacement ? up to 20,000 h maintenance free operation possible due to Laser Light Source.

Get Great Performance ? while not compromising on quality and ease of use.

Low Noise Level ? with 31dB, the silent technology will not disturb your meeting.

Impress with vivid colour & contrast ? brilliant white and wide colour space with high dynamic contrast.

Incredible visualisation capabilities ? impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.
