80PPM A3 Colour Light Production MFD with DSPF

The Sharp BP-C542WD Advanced A4 Colour MFD delivers crisp, high-quality output with exceptional ease of use. This model provides customers with an intuitive user experience and the confidence of knowing their jobs will come out right the first time, every time. With high-performance features typically found on larger A3 machines, the BP-C542WD delivers the security you need, with the productivity and reliability you want.

Designed to fit today?s diverse workstyles, the BP-C542WD enables workers to collaborate and share information seamlessly and securely throughout the office environment. Enhanced cloud services such as Microsoft Teams make it easy to streamline communication and boost productivity with hybrid workers.

SKUBPC542WD

Product Key Features

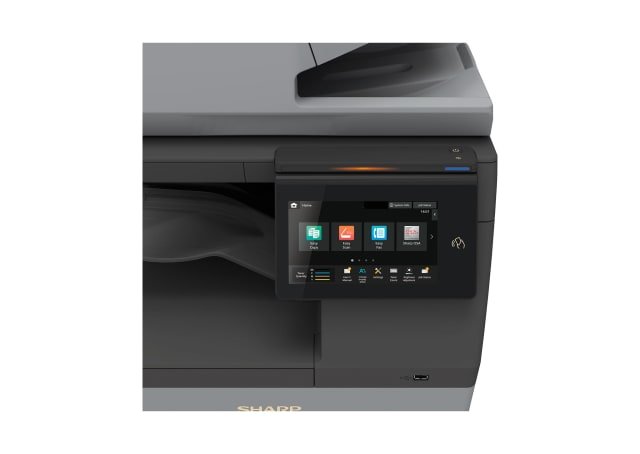

15-4-Inch Colour LCD Touchscreen

15-4-Inch Colour LCD Touchscreen

Sharp?s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the BP-PE10 Fiery Controller, Command WorkStation is fully integrated at the MFD control panel.

Fiery? Print Server

Paired with an industry-leading Fiery server, this MFD becomes a powerful integrated solution for managing professional in-plant and busy on-demand printing environments. Two options are available to match your needs: the multifunctional BP-PE10 external server, or the more affordable BP-PE11 embedded server.

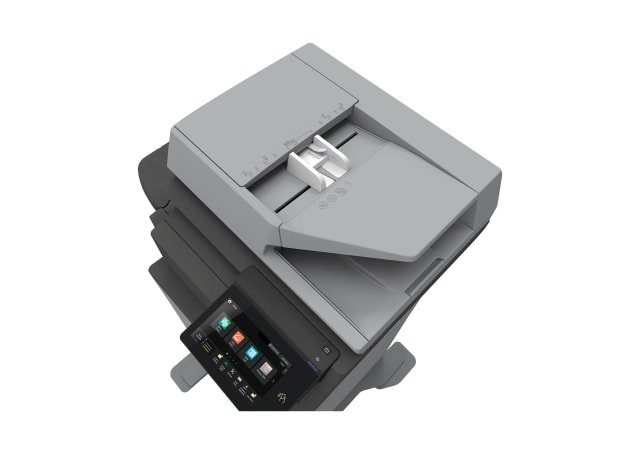

Duplex Single Pass Feeder

Duplex Single Pass Feeder

With Skewed Sheet Detection sensors that detect images that are not fed in straight and Multi-Feed Detection that stops when two or more originals are fed at once, this 300-sheet DSPF can scan up to 280 opm (originals per minute; two-sided).

Retractable QWERTY Keyboard

Retractable QWERTY Keyboard

A full-size retractable QWERTY keyboard slides out from beneath the control panel for fast and easy text input

Convert Documents via OCR

Convert Documents via OCR

With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.

Print & Share Documents Easily

Print & Share Documents Easily

Seamlessly collaborate with colleagues, even when they are working remotely. With Cloud Connect, businesses gain access to popular cloud services including Microsoft Teams, Google Drive, and others. The Sharp Application Portal also makes it easy for administrators to add new or update existing applications directly from the MFD touchscreen.

2,400 dpi High-Resolution Output

2,400 dpi High-Resolution Output

The BP90C70/ BP90C80 series delivers razor-sharp 1,200 ? 1,200 dpi printing?without sacrificing output speed. Digital smoothing technology enhances the print resolution so fine-grained photographs, detailed illustrations, graphs, and small text come out crisp and clear. What?s more, this MFD also supports 2,400 ? 2,400 dpi writing resolution.

Full-Bleed Printing

Full-Bleed Printing

With its edge-to-edge printing, the BP90C70/ BP90C80 series can print right to the top and bottom edges of the page?only the lead and trail side edges need to be trimmed to achieve a full-bleed effect. This makes it easy to create professional-looking banners in-house?and booklets too, if you use the optional trimming module and saddle stitch finisher.

On-Screen Machine Status

On-Screen Machine Status

The BP-90C70/BP-90C80 status screen shows the state of your MFD, displaying the current operation and notifications for things like paper, toner, and maintenance.

Multi-Feed Detection System

Multi-Feed Detection System

A precision-engineered Multi-Feed Detection System employs ultrasonic technology and separation rollers for double-fed paper to detect and prevent misfeeds from the paper feed section for maximum uptime.

Specifications

Original Size

Max A3

Operation Panel

15.4" Colour LCD Touch-Screen

Product Environment

Light production and department

Maximum Paper Capacity

13, 2500 sheet x 4 LCT), 500 (1200 + 800 sheets, 500 sheet bypass, 500 sheet x 2

Paper Weight

55-220gsm [MX-MF11], Bypass Tray: 55-360gsm [MX-MF10], LCC: 60-220gsm, LCT (Air): 55-300gsm, Tray 1 & 2: 60-105gsm, Tray 3 & 4: 60-300gsm

Output Capacity

additional MXTR14 100-sheet right tray, Optional MXTU14 250-sheet centre tray or Finisher is required

Warm-up Time

80 Sec

Memory

6 GB (STD & Max)

HDD Capacity

256GB SSD, Opt 512GB SSD

Dimensions (WxDxH)

530 millimetre, 982 x 768 x 1

Weight

220 kilogram

Sharp OSA

6.0 (Opt: BPAM10L and/or BPAM11L required)

Copy Speed

44 ppm (SRA3), 45 ppm (A3), 80 ppm (A4)

First Copy Time (OC)

B/W: 3.5sec, Col 4.6sec

Continuous Copy

999, Max 9

Scan Resolution

600 x 600 dpi

Zoom Range

25 – 400% (DSPF 25 – 400%) in 1% increments

Power Consumption

Max. 3.84 kW

TEC Value (Weekly)

7.13 kWh

Document Feeder

Std. DSPF

Original Capacity

Max 300 sheets (80 g/m2)

Scan Speed (Max)

140 opm (1-sided), 280 opm (2-sided)

Quick/Main Folder

000 pages or 1000 files, 000 pages or 3000 files, Main/ Custom: Max. 20, Quick Folder: Max: 10

Preview Thumbnails

Supported (includes Advanced Edit Mode)

Print Speed (Max)

44 ppm (SRA3), 45 ppm (A3), 80 ppm (A4)

PDL (Emulation)

Adobe? PostScript?3, STD: PCL6

Fiery Controller

Optional BPPE10 (external controller) or BPPE11 (embedded controller)

Wireless LAN

N/A

Protocol

Network protocols: TCP/IP (IPv4/IPv6)

Supported OS

11, 12, 13, 14 & 15, Mac OS 10.10 to 10.15, Windows Server? 2012(R2), Windows Server? 2016, Windows Server? 2019, Windows Server? 2022, Windows? 10, Windows? 11

Utility Software (Download)

Status Monitor

Sharpdesk Mobile

Not Supported

Resolution

100, 150, 200, 300, 400, 600 dpi, 600 dpi; Pull scan 75, Push scan: 100

Format

compact PDF, CSV, DOCX, encrypted PDF, JPEG, Mono: TIFF, PDF, PDF/A-1a, PDF/A-1b, rich text (RTF), rich text (RTF) Colour: TIFF, Searchable PDF, text (TXT), XPS

Destination

Email, FTP, SMB Folder, USB & Local drive

User Registration

000 registrations (Max. 500 addresses for one Group Key), Max 2

Requirement

Optional BPAM10L is required

Cloud Connectors

Box? & Dropbox?, Google Drive?, Microsoft? One Drive? for Business, Microsoft? SharePoint? Online, Microsoft? Teams?

Facsimile Model

Not Supported

SHARP business products warranty statement

This Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
